IRXD Installation & Configuration
Step 1 - Installation
1. Make sure no items are missing. Your IRXD kit should include:
• IRXD rack mount unit.
• 2 Rack mount right angle brackets.
• AC/DC adapter.
• Operation manual.

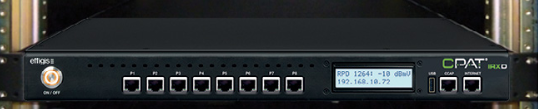

2. Install the IRXD unit in a rack mount
CAUTION!: Leave space for front, back and lateral ventilation.
3. Electrical installation
4. CCAP and P1-P8 Ports
P1~P8 and CCAP ports are connected on the internal network. CCAP port communicates with CMTS/CCAP by SNMP. P1-P8 receives L2TPv3 packets from configured RPD.
5. Internet Port
The IRXD needs access to the Internet to transmit received measurement level to the CPAT WEB application and for automatic firmware updates. Transfers vary from less than a 1 MBytes to a maximum of ~7 Mbytes per day depending of the amount of the patrolling (drive out), the number of ITX2's in the sector and the number of ingress events detected on the network.
The IP (v4 or v6) address is acquired with the use of DHCP. If no DHCP server is present on the network, the system will not be able to transmit data over the network.
